NMK’s key focus has long been with Food Trucks and Mobile Business Vehicles. NMK also has years of experience with Food Trailer projects, best suited for established companies with a need for high-quality craftsmanship and unique solutions. Most custom-designed Trailers fall within a range of $45,000 to $60,000 + cost of appliances for complete turnkey mobile solutions.
PREVIOUS NMK FOOD TRAILER PROJECTS
Puget Sound Pizza, Tacoma, WA
This project was brought to us by the family operation of Puget Sound Pizza. They’ve had successful brick and mortar locations for years and were wanting to have the flexibility to also take their delicious pizza offerings to fairs and events around the Pacific Northwest. The finished product turned out beautifully and we can’t wait to try a slice from them sometime in the near future! Check out their calendar of events here.
FSTOP Cafe Coffee Trailer, Bainbridge Island, WA
NMK converted this vintage 1950 Boles Aero trailer into a classic mobile coffee vending cart for FSTOP Café. It’s now a regular presence at area Farmer Markets and community events on Bainbridge Island, Washington.

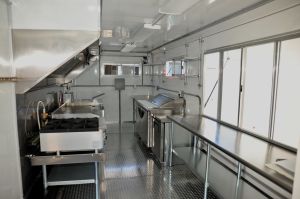

Tacos La Roca, Chelan, Washington
Tacos La Roca in central Washington upgraded their old catering trailer to a new, 24 foot custom design from Northwest Mobile Kitchens. Now they can serve farmworkers in this agricultural community faster and more efficiently.
Food Trailer Dimensions:
- Interiors range from 14’ to 28’ Length, 96” Width and 84” to 90” interior ceiling heights (+/-).
- Overall Length: Add 36” +/- for trailer tongue.
- Frame: Double 6” I Beam, roof & floor cross members at 24” O.C. Wall hat posts 16” O.C. Roof vent 14” x 14”. Dexter leaf spring 4” drop axles, corner post drop down jacks.
Food Trailer Features:
- WALL & CEILING FINISH: White Aluminum sheeting over plywood & 1″ Polystyrene Insulation
- EXHAUST SYSTEM: Stainless Steel Exhaust Hood (type 1) and Fan Motor (variable speed,roof mounted, restaurant quality, grease rated).
- STAINLESS STEEL WALL WRAP(below hood): Over 1/2″ Gypsum Board Fire Barrier beneath hood
- PLUMBING SYSTEM:Plumbing System for class IV Concession Vehicles & installed by a licensed plumber: Stainless Three Compartment Sink, Stainless Hand Sink, Water Pump, electric 7 gal Water Heater, 35 gallon FRESH water tank, 42 gallon GRAY water tank.
- ELECTRICAL SYSTEM:100amp Breaker Box, 30 to 50amp Main Breaker, Ceiling LED Lighting with two wall switches, 6 outlets, and 2 junction boxes.
- AWNING DOOR/SERVICE WINDOWS:(42” H x 5’ or 6’ W, plus custom sizes), Gas Shocks, w/ Locking Latch Bolts.
- SLIDING TEMPERED GLASS SERVICE WINDOWS (With Screens)
- ENTRY DOOR:38″ W X 80″ H.
- EXTERIOR SERVICE SHELVES:stainless steel sized to customer’s needs.
- FLOORING OPTIONS:Aluminum Tread-Plate (Other options available)
- SPECIALTY EQUIPMENT:
• Generator (propane or gasoline)
• Propane lines and Tanks
• Fire Suppression – Ansul System
- Stainless tables.
- Graphic Wraps & Design Service.
- Air Conditioning
*Cooking appliances are selected during NMK Design Phase prior to Food Trailer Outfitting, then installed by NMK during the Outfitting Phase.
